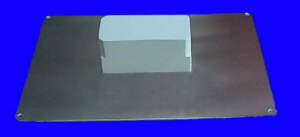

| Indoor Antenna for GSM, AMPS, TACS |  |
 | Model I-GSM-O-A |
 |
SPECIFICATIONS
Model I-GSM-O-A
| Freq. range | 820-980 MHz |
| VSWR | <2:1 |
| Gain | 2-4 dBi |
| Impedance | 50 ohms |
| Connector | type-N female |
| Polarization | VP |
| Weight | <300g |

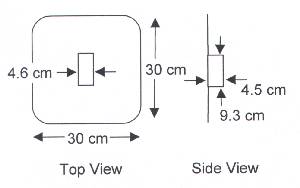

| Size | 30 cm x 30 cm,
4.5 cm thick |
| Radome: | ABS plastic |
| Mounting: | Ceiling-mounted |
| Pattern: | Omnidirectional (360°) |
| Max Power: | 200 W @ 25° C |
| Accessories: | External lightning protector available |
|  |
| For a broadband omnidirectional antenna which can cover more frequency bands, see WEOE's I-800M3G-O series. |
For continued improvement of product, specifications are subject to change without notice.
