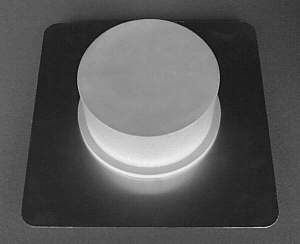

Broadband/Multiband Indoor Antenna


Model I-800M3G-O-B-W

Single or Multiband (0.8-3.0 GHz)
covering
AMPS, GSM, PCS, etc.
SPECIFICATIONS

Model I-800M3G-O-B-W
Freq. range0.8 to 3.0 GHz
VSWR<2:1
Gain2-5 dBi*
Impedance50 ohms
Connectortype-N female
PolarizationVP
Weight<0.5 kg
Size30 cm x 30 cm,
9 cm thick


Radome:White ABS plastic
Mounting:Ceiling-mounted
Pattern:Omnidirectional (360°)
Max Power:200 W @ 25° C
Accessories:Optional ground plane and external lightning protector available
  • Can handle multiple systems simultaneously

  • Broad instantaneous bandwidth, thus not vulnerable to detuning by mounting structures and other interference objects

  • Aesthetically appealing
Added Value: This antenna eliminates the need to add or upgrade antennas later for new systems in 0.8-3.0 GHz
*Optional Ground Plane
If a narrower beam (or higher directivity) is desired, an optional 60 cm x 60 cm ground plane is available

For continued improvement of product, specifications are subject to change without notice.
