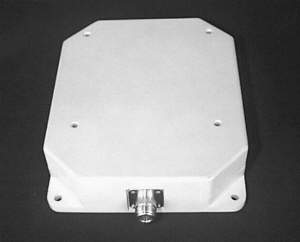

Low-Profile and Broadband/MultiBand Indoor Antenna


Model I-800M3G-U-B-W

Single or Multiband (0.8-3.0 GHz)
covering
AMPS, GSM, PCS, etc.
SPECIFICATIONS

Model I-800M3G-U-B-W
Freq. range0.8 to 3.0 GHz
VSWR<2:1
Gainapprox. 5-7 dBi
Impedance50 ohms
Connectortype-N female
PolarizationBasically RHCP*
Weight<0.5 kg
Size18 cm x 15 cm,
4.3 cm thick

*CP is preferred over LP to mitigate
multipath fading.

Radome:White ABS plastic
Mounting:Can be ceiling- or wall-mounted
Pattern:Broad beam toward front
Max Power:50 W @ 25° C
Accessories:Optional external lightning protector available

  • Can handle multiple systems simultaneously

  • CP (circular polarization) mitigates multipath fading and wave depolarization effect, resulting in a more stable link than linearly polarized antennas

  • Broad instantaneous bandwidth, thus not vulnerable to detuning by mounting structures and other interference objects

  • Low profile and aesthetically appealing
Added Value: This antenna eliminates the need to add or upgrade antennas later for new systems in 0.8-3.0 GHz
Patents

U.S. Patents No. 5,313,216, etc.
Taiwan Patent Certificate No. 065832

For continued improvement of product, specifications are subject to change without notice.
