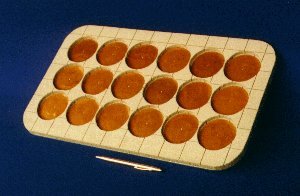

Low-Profile Broadband/Multiband Phased Array


Single or Multiband
SPECIFICATIONS*

Instantaneous
bandwidth		up to 10:1
VSWR<2:1
Impedance50 ohms
PolarizationCP
Protrusion0 to 0.8 cm

Max. power per element:300 W @ 25° C
Switching:Either photonical or electrical control


*Custom made to specifications

*Can provide either the module or the full beam-steered array

FEATURES:
  • Low cost

  • Can handle multiple systems simultaneously

  • Low-profile and comformable to platform

  • Phase shifter integrated into antenna element with reduced cost and weight

  • Broad instantaneous bandwidth

  • Can be structurally embedded in composite material
Patents
U.S. Patent No. 5,313,216
Other patents awarded or pending

For continued improvement of product, specifications are subject to change without notice.




Wang Electro-Opto
Marietta, Georgia, USA
Telephone: (770) 955-0955
Fax: (770) 984-9045
